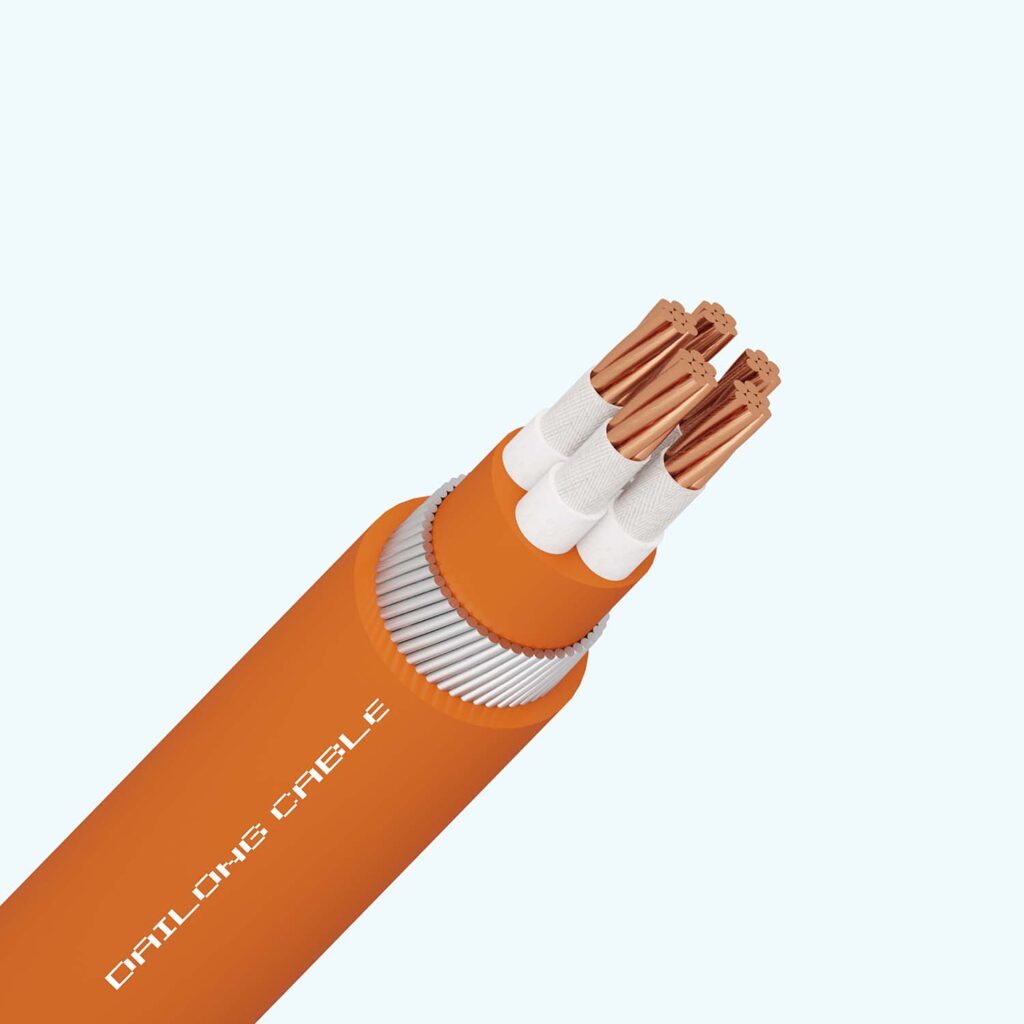

Cu/Mica/XLPE/LSZH/SWA /LSZH 0,6/ 1kV

CABLE IDENTIFICATION:

• Cable core: red. yellow. blue. black. yellow-blue (with colored tape. except green-yellow core)
• Sheath: orange or as required

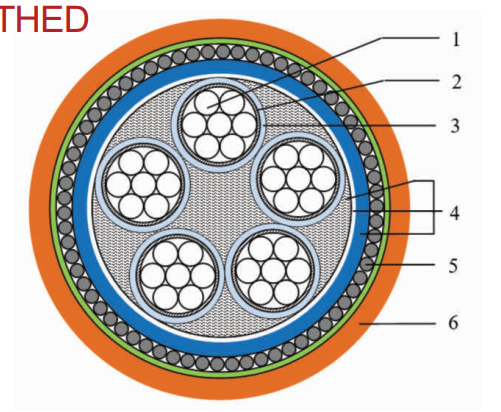

CONSTRUCTION (Caption for product structure image (left image)): Cu/Mica/XLPE/LSZH/SWA/LSZH

1. Conductor: Soft annealed Copper (grade 2. circular or compacted)
2. Fireproof layer: Mica tape
3. Insulation: XLPE
4. Fillers: bandages and inner sheath: PP. PET. LSZH
5. Armor: steel fiber
6. Sheath: LSZH

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0.6/1 kV
• Maximum conductor temperature: 90°C in normal operation. 250°C short-circuit max for 5s
• Minimum bend radius: 12xD (12 times the outside diameter of the cable) • Fireproof: IEC 60331; BS 6387
• Flame retardant: BS EN 60332-1; IEC 60332-1
• Acidity gas and corrosive vapors: BS 7846; BS 50267-2-1; IEC 60754-1 & 2
• Fuming level: BS 7846; BS EN 50268-2; IEC 61034-2

Uses:

• Works: station. elevator. tunnel
• Airport / Building / Apartment
• Crowded area
• Backup power system in case of fire. for example, Fire alarms. stairwells. fire pump...
