Cu/XLPE/PVC/SWA/PVC – W 0,6/1kV

CABLE IDENTIFICATION: by color tape

• Insulation:
  • Phase core
  • Neutral core : Red, yellow, blue. : Black
• Sheath: black
• The above indentifying can be changed as order

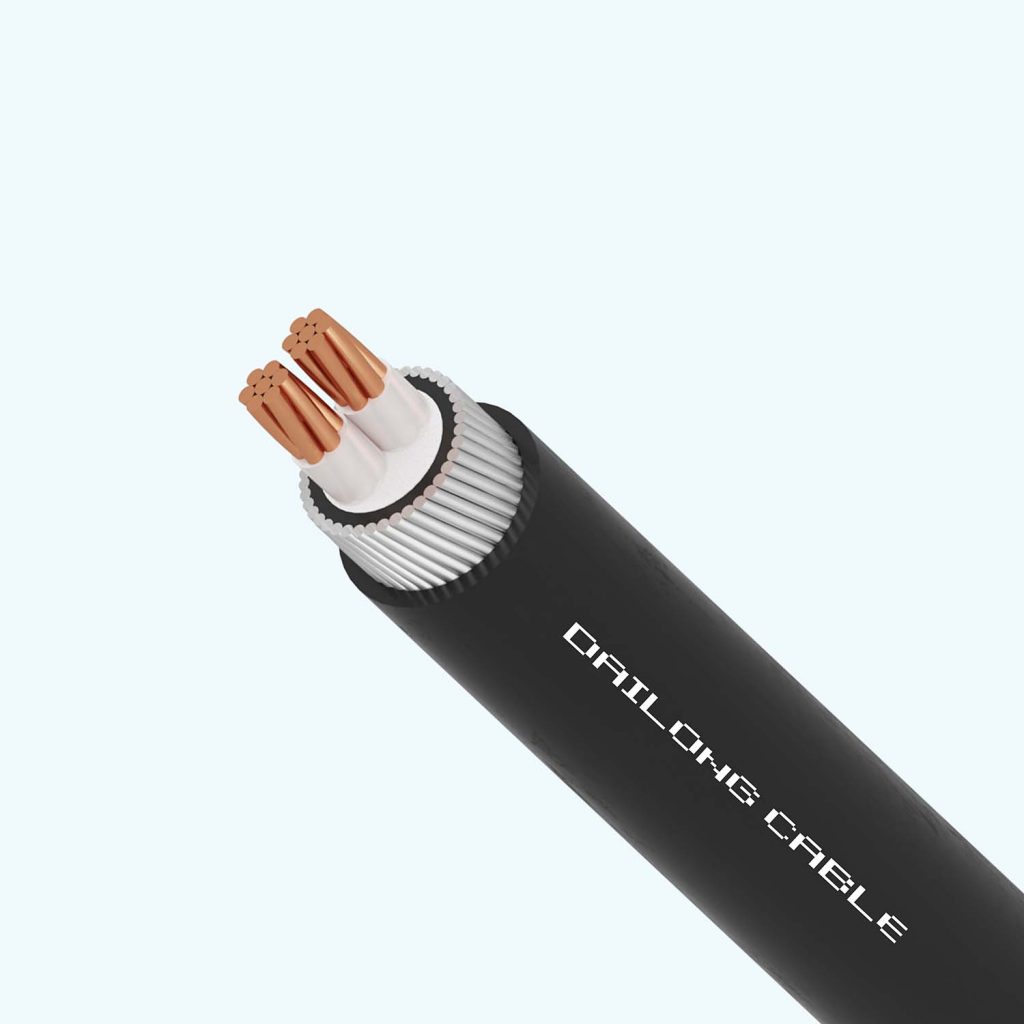

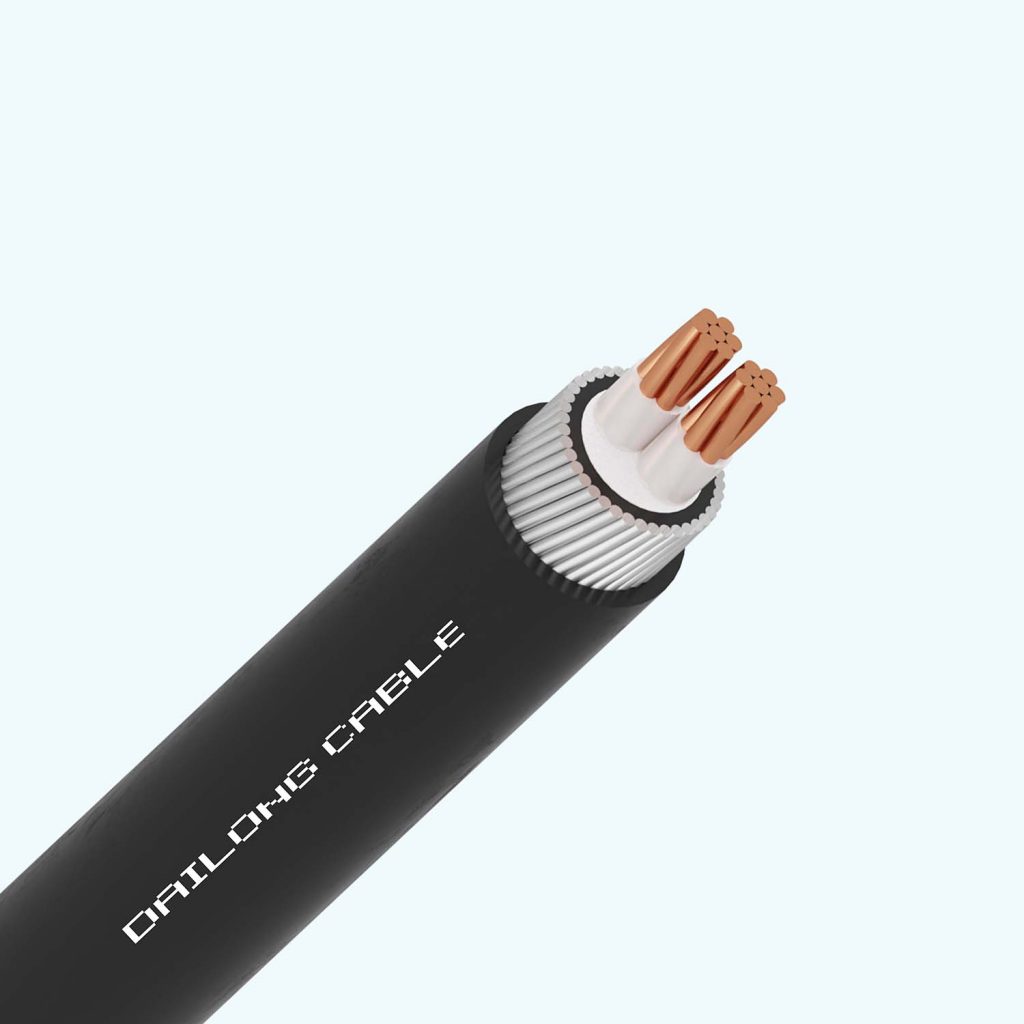

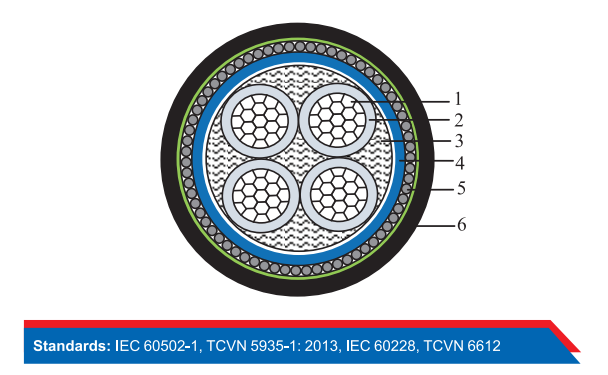

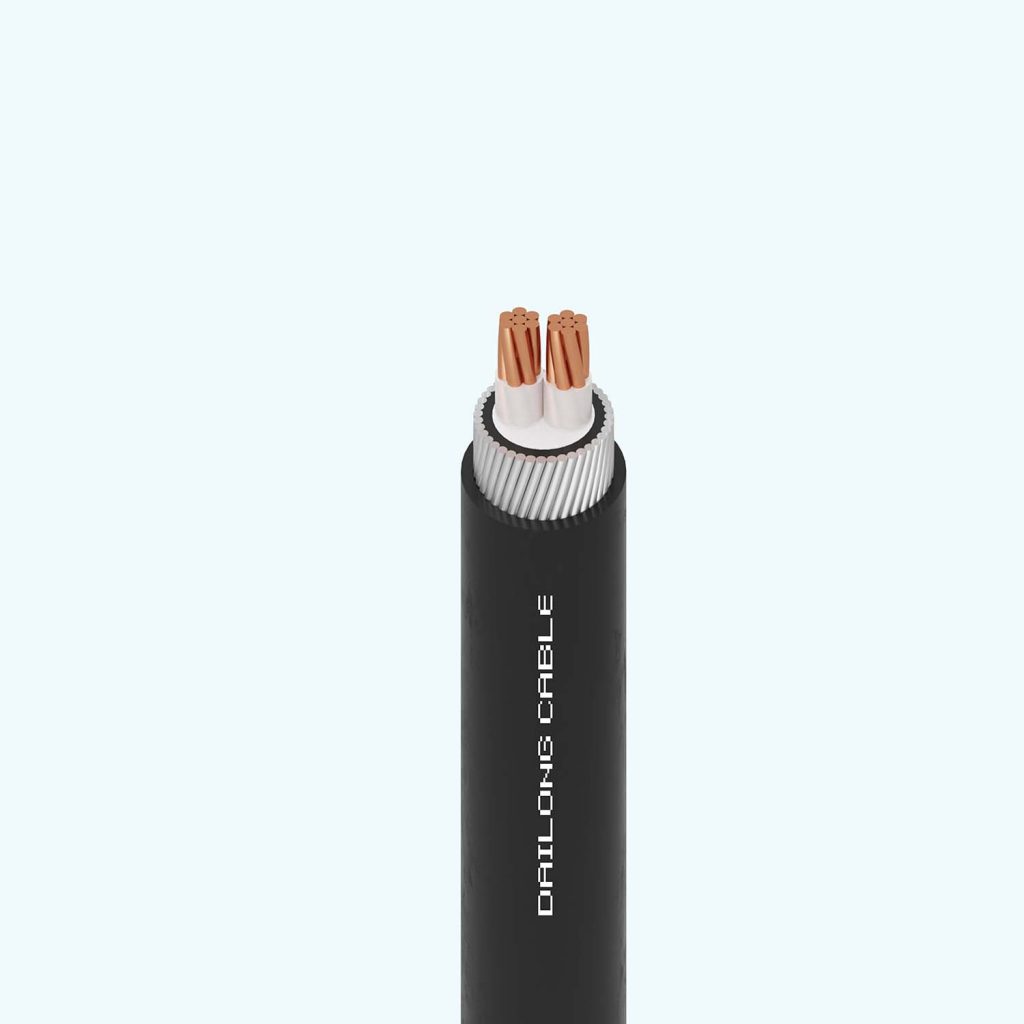

CONSTRUCTION (Caption for product structure image (left image)): Cu/XLPE/PVC/SWA/PVC - W

1. Conductor: Copper (class 2), compacted and water-blocking material
2. Insulation: XLPE
3. Filler layer: PVC or PP, binder tape (if necessary)
4. Inner sheath: PVC (ST2)
5. Metallic amor: Steel wire and binder tape
6. Outer Sheath : PVC (ST2)

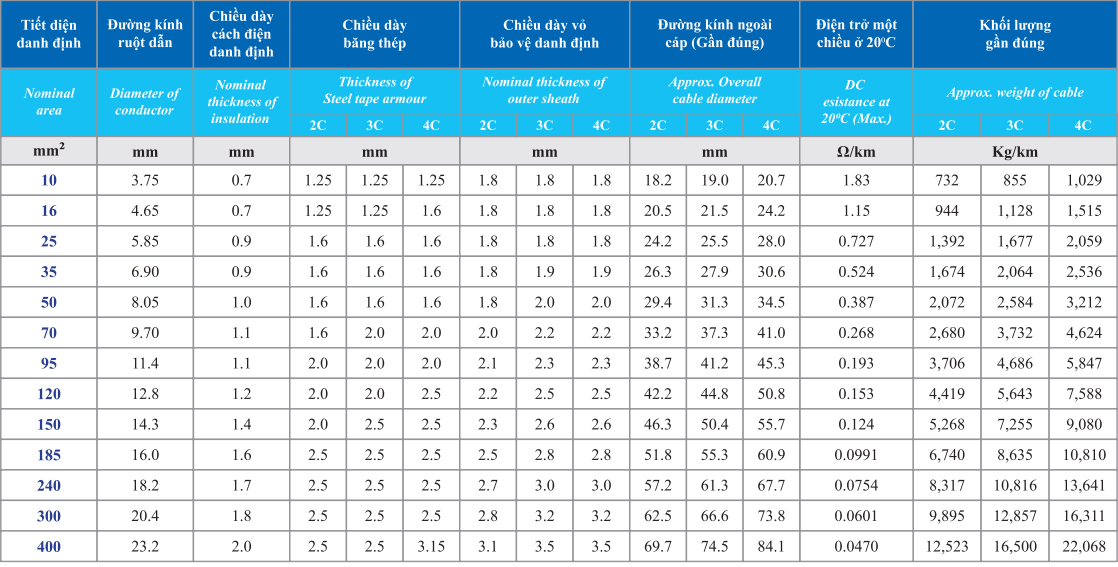

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0,6/1 kV
• Max conductor temperature in normal operating conditions: 90°C
• Max conductor temperature when short-circuit in a maximum 5s: 250°C
