Cu/XLPE/PVC/SWA/PVC – W 0,6/1kV

CABLE IDENTIFICATION: by color tape

• Insulation:
  • Phase cores: red, yellow, blue
  • Neutral core: black
• Sheath: black
• The above identifying can be changed as order

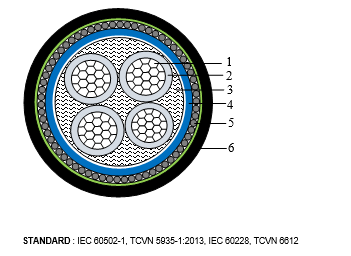

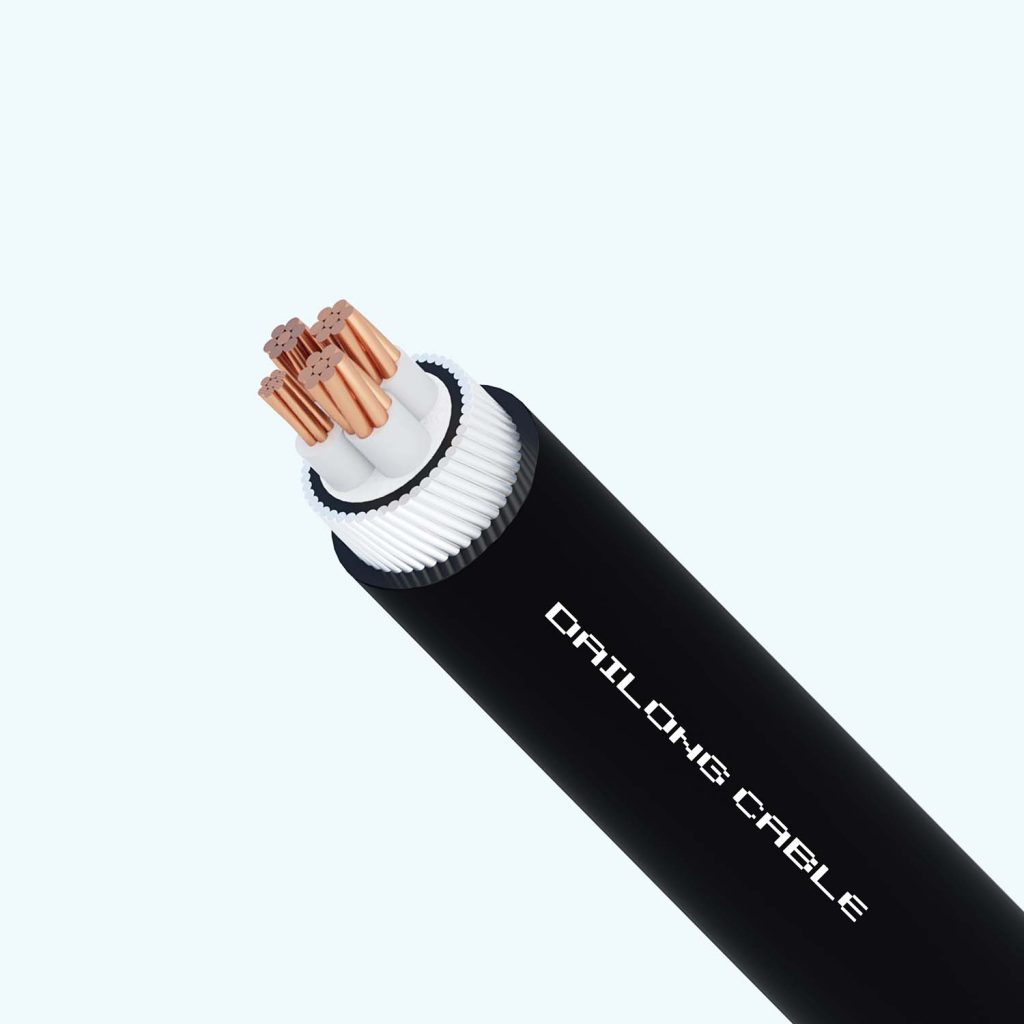

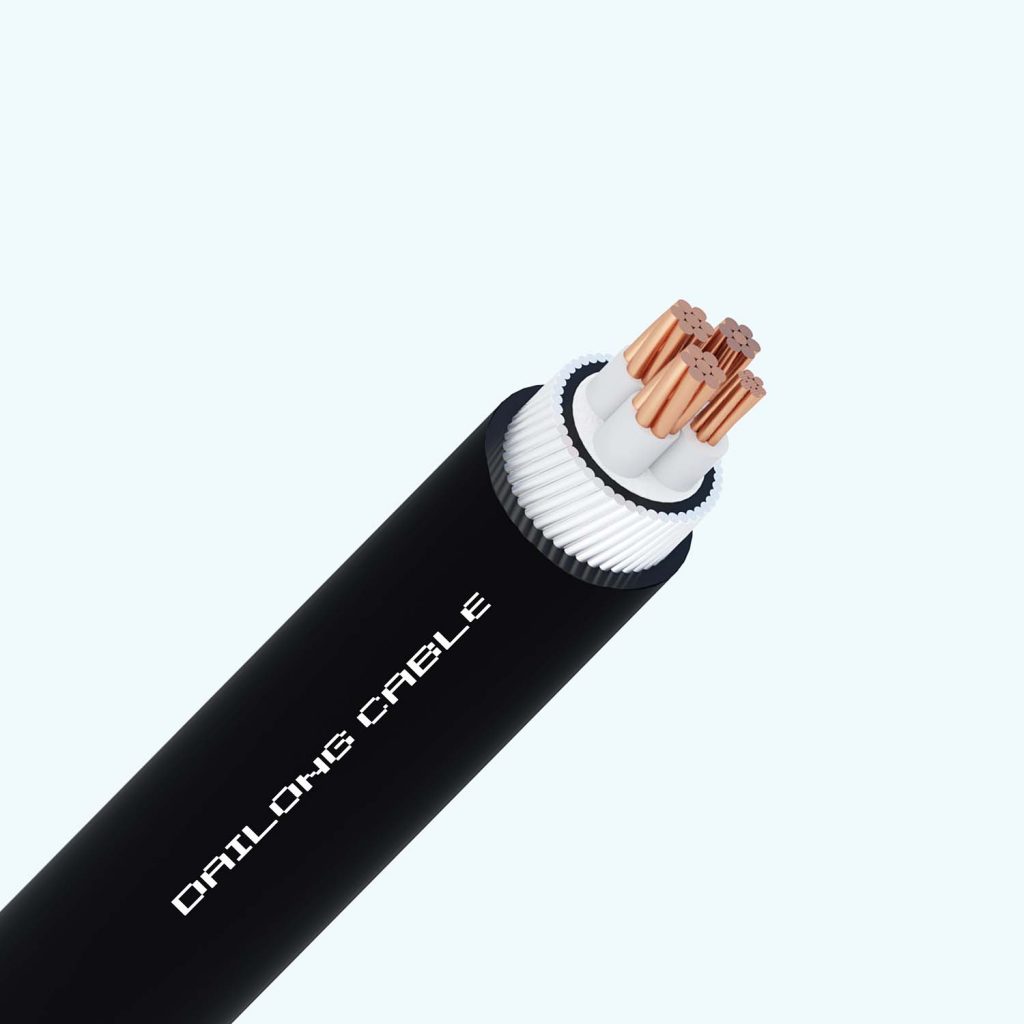

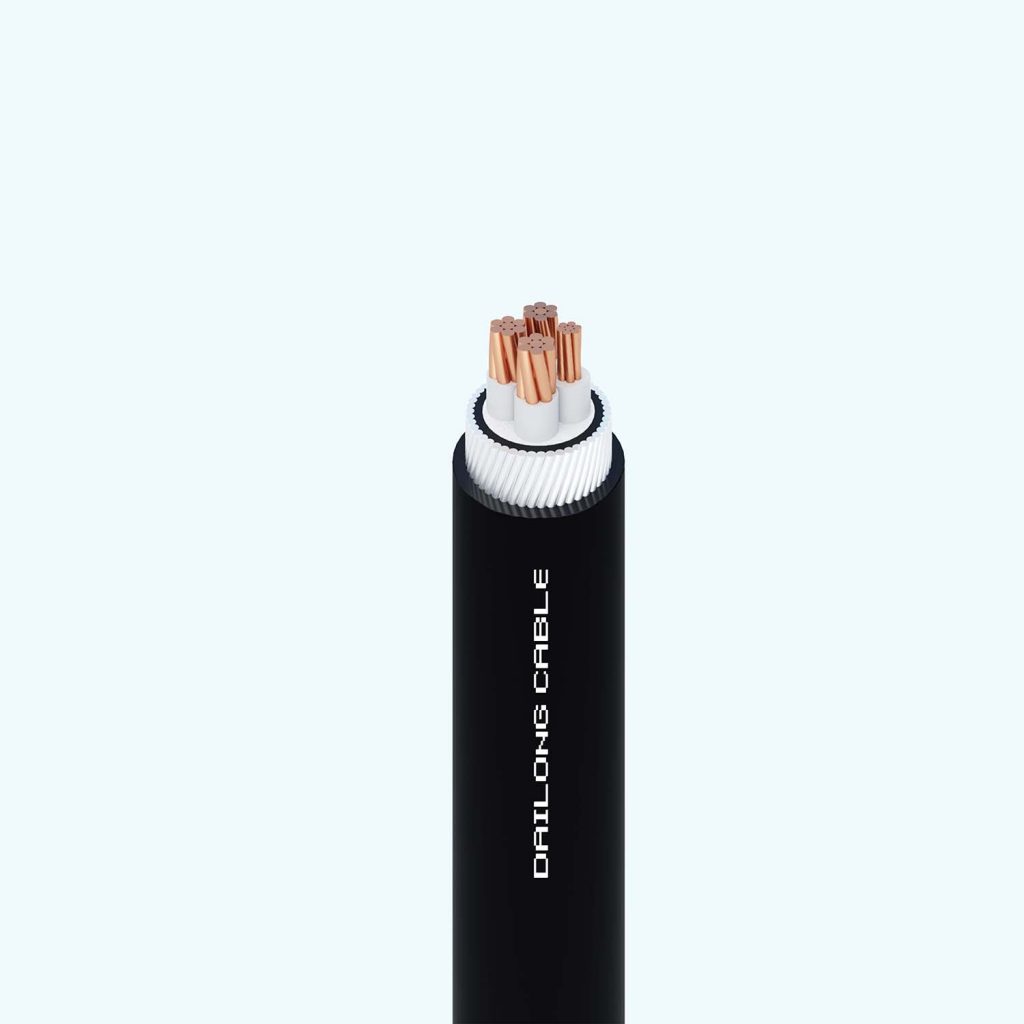

CONSTRUCTION (Caption for product structure image (left image)): Cu/XLPE/PVC/SWA/PVC-W

1. Conductor : Copper (class 2), compacted and water-blocking material
2. Insulation : XLPE
3. Filler layer : PVC or PP; binder tape (if necessary)
4. Inner sheath: PVC (ST2)
5. Metallic amor: steel wire and binder tape
6. Outer sheath: PVC (ST2)

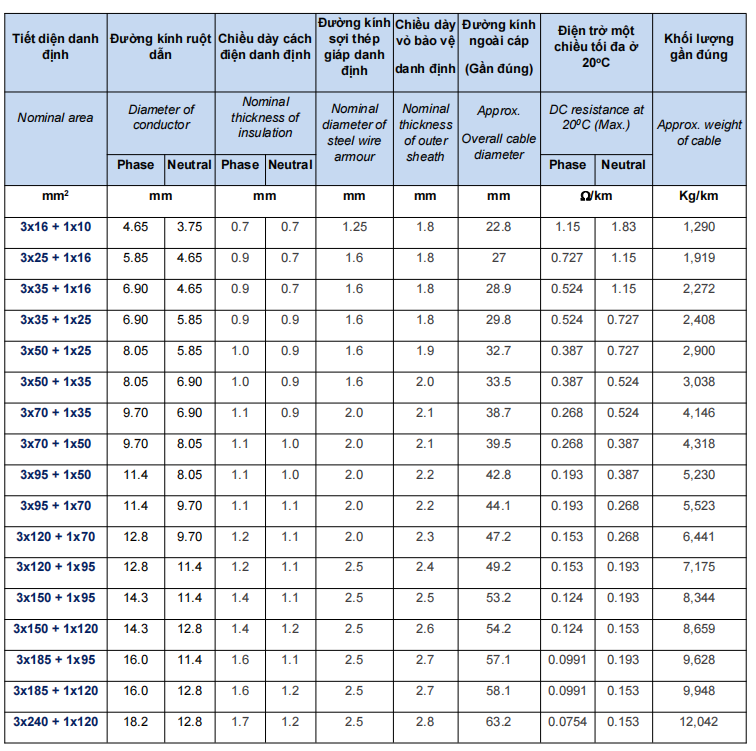

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0,6/1kV
• Max. conductor temperature in normal operating conditions: 90°C
• Max. conductor temperature when short-circuit in a maximum 5s: 250°C
