Cu/XLPE/PVC/AWA/PVC – W 0,6/1kV

CABLE IDENTIFICATION:

• Insulation: XLPE Natural Color
• Outer Sheath: Black or according to customer's requirement

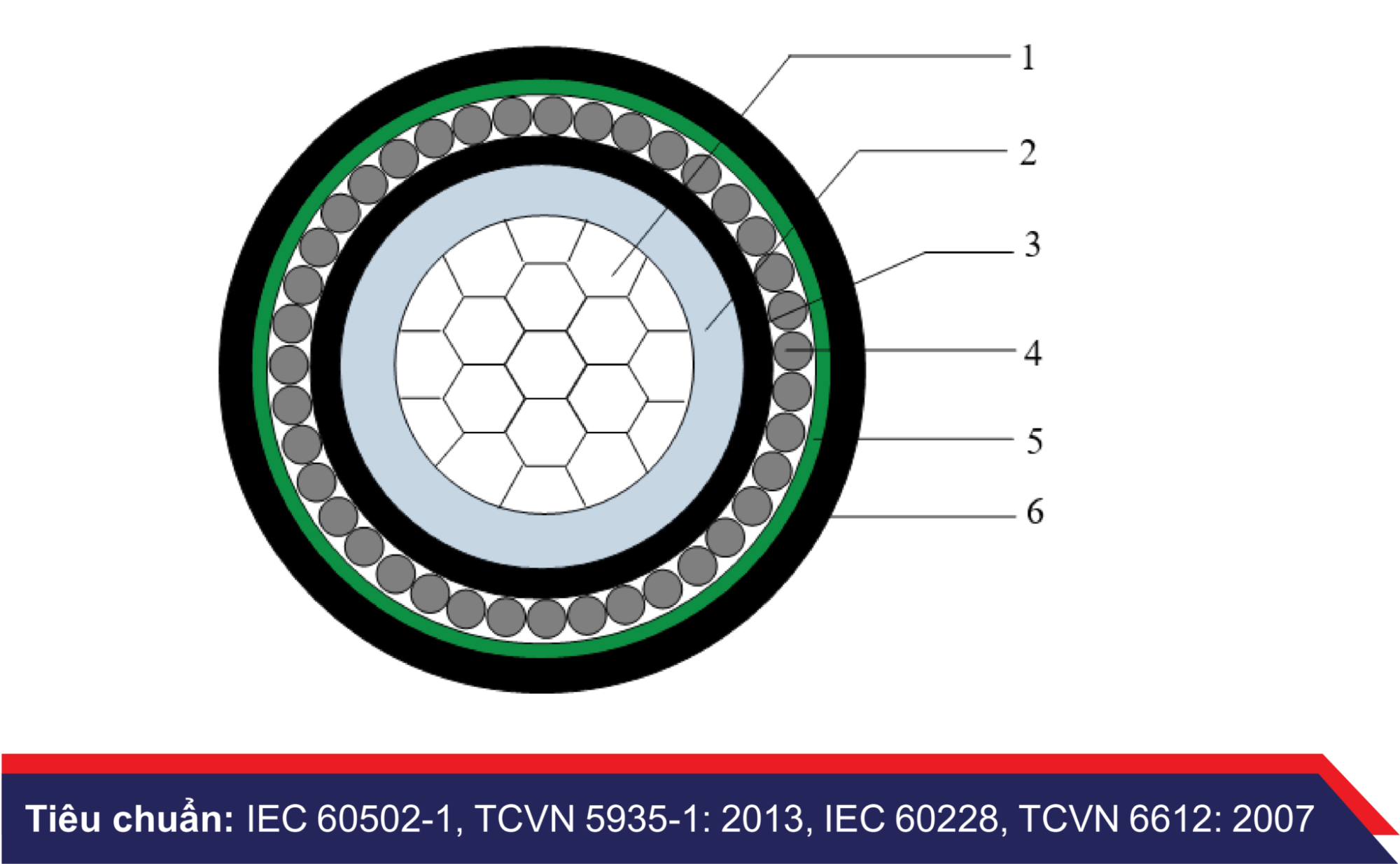

CONSTRUCTION (Caption for product structure image (left image)): Cu/XLPE/PVC/AWA/PVC-W

1. Conductor: Copper (grade 2, compact) and waterproof material
2. Insulation: XLPE
3. Inner sheath: PVC (ST2)
4. Protective armor: Aluminum fiber
5. Wrapping Tape: Foam tape
6. Outer Sheath: PVC (ST2)

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0,6/1 kV
• Max conductor temperature in normal operating conditions: 90°C
• Max conductor temperature when short-circuited for a maximum of 5s: 250°C
