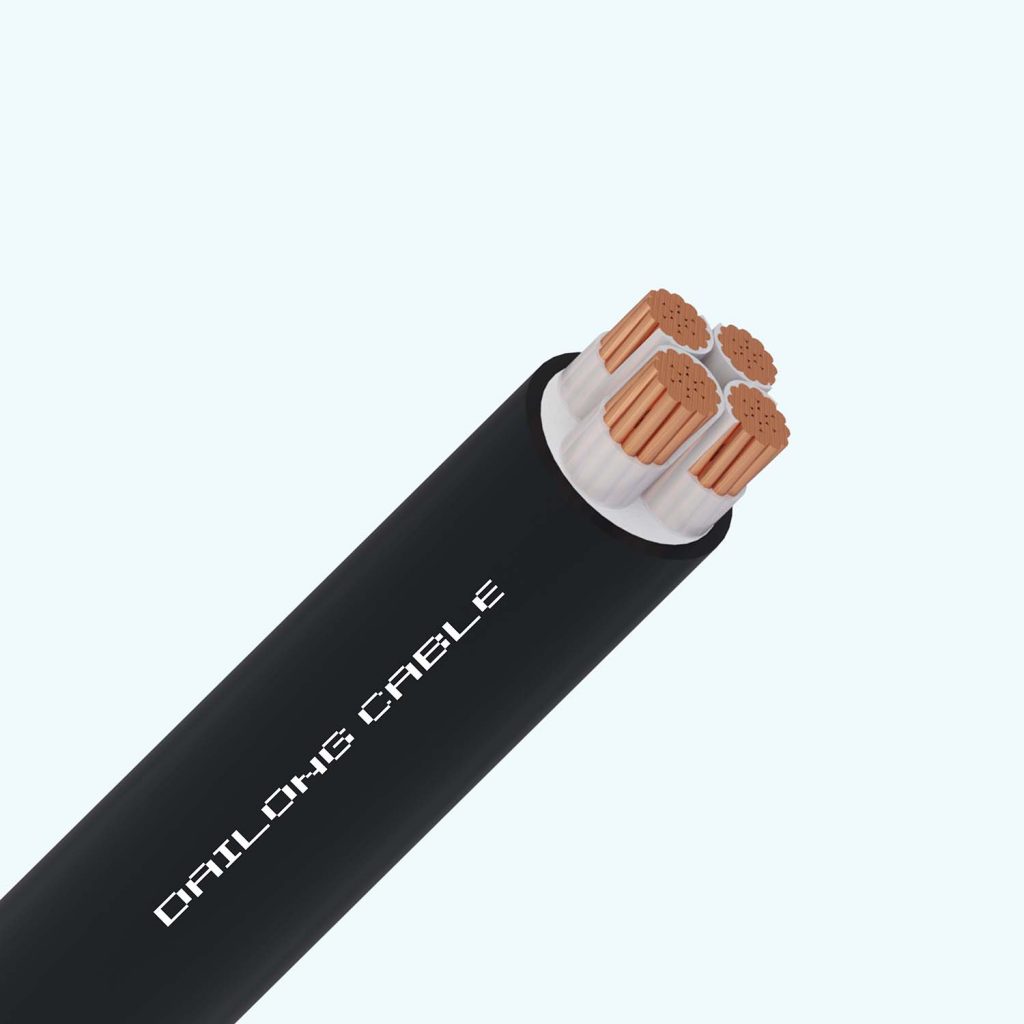

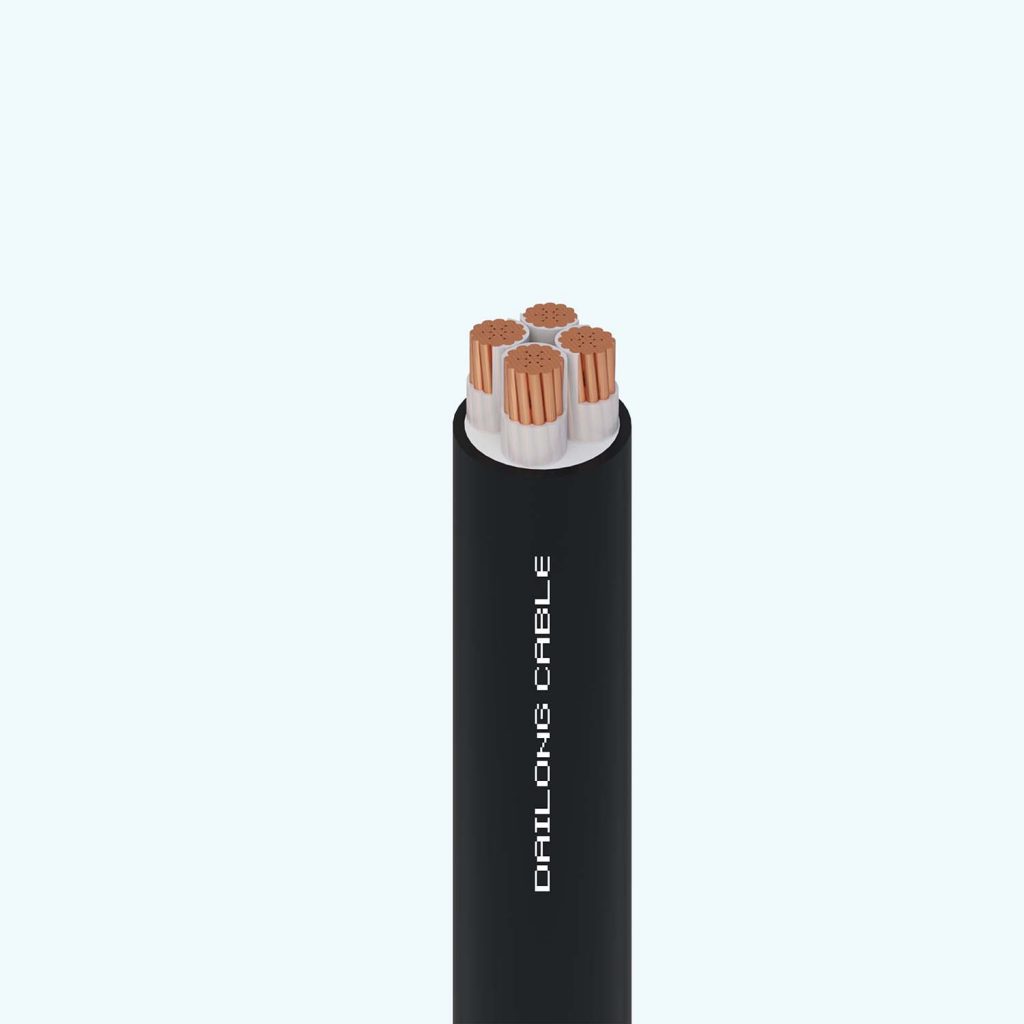

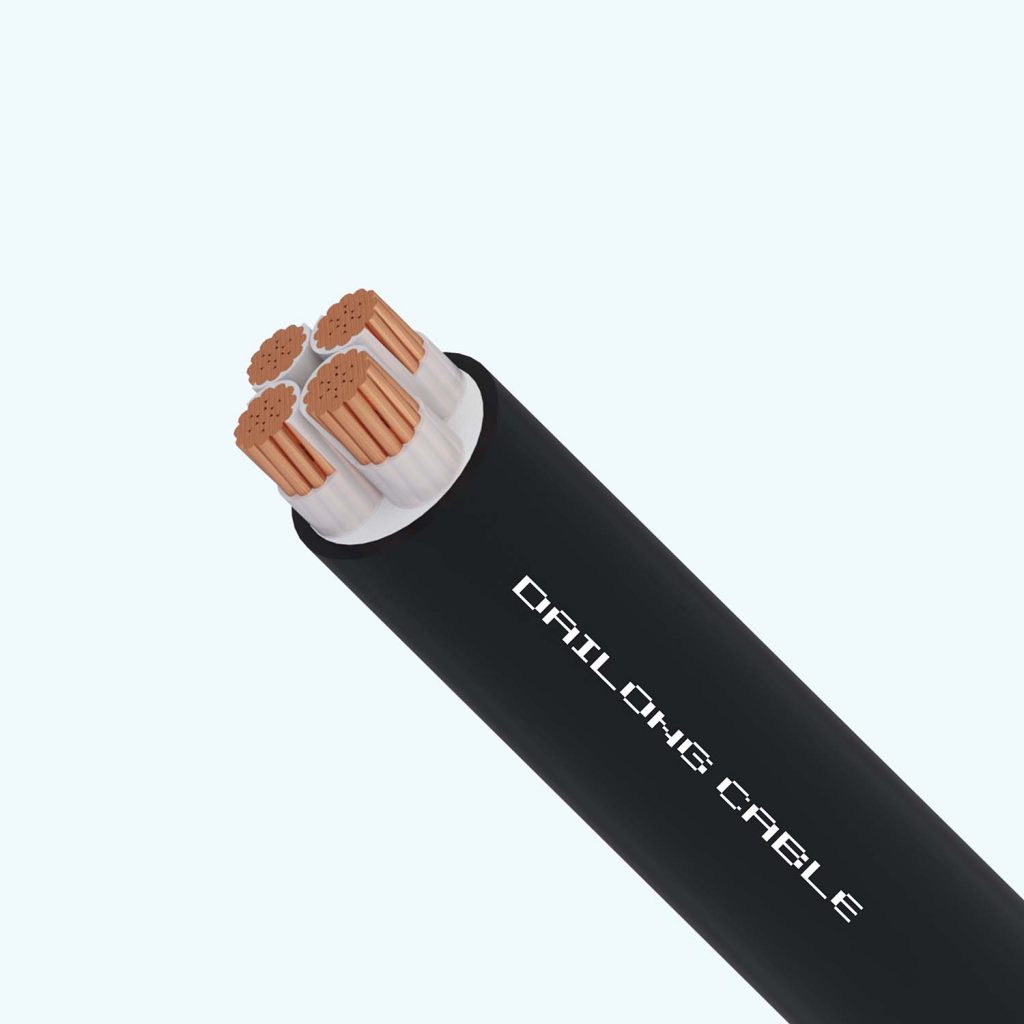

Cu/XLPE/PVC – W 0,6/1kV

CABLE IDENTIFICATION: By color tape

• Insulation:
  • Single core cable: natural color without tape
  • Muitle-core cable: red, yellow, blue, black
• Sheath: black

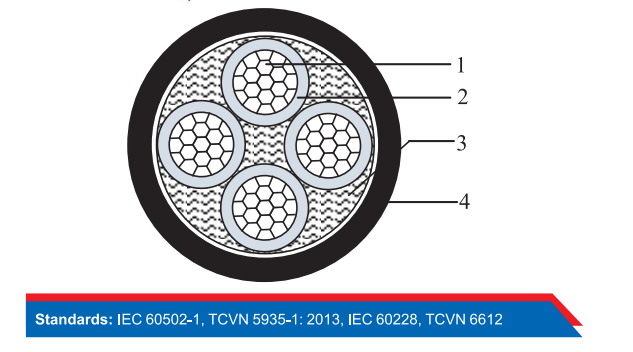

CONSTRUCTION (Caption for product structure image (left image)): Cu/XLPE/PVC - W

1. ConductorCopper (class 2) compacted or non-compacted and water-blocking material
2. Insulation : XLPE
3. Filler layer : : PVC or PP, binder tape (if necessary)
4. Outer Sheath: PVC (ST2)

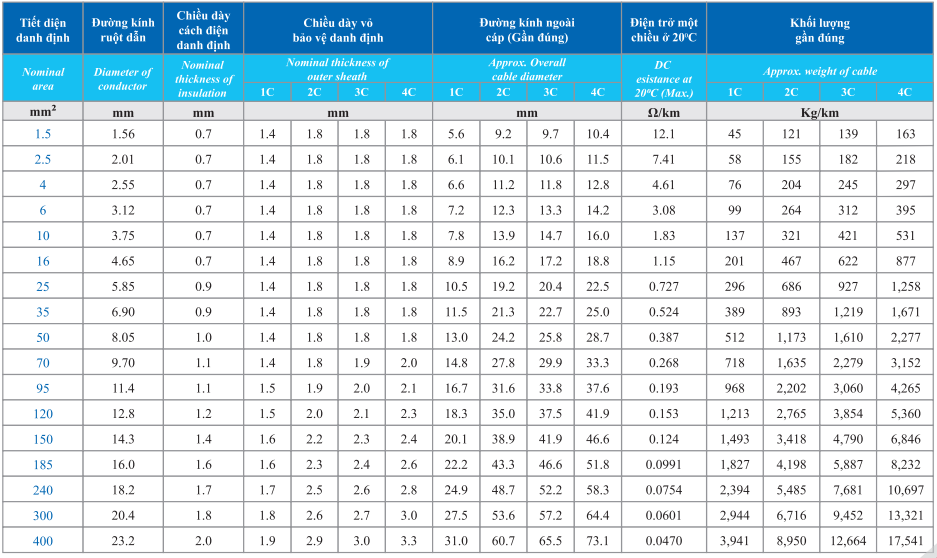

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0,6/1 kV
• Max conductor temperature in normal operating conditions: 90°C
• Max conductor temperature when short-circuited for a maximum of 5s: 250°C
