Cu/PVC/PVC-W 0,6/1kV

CABLE IDENTIFICATION: by color tape

• Insulation:
  • Phase cores red, yellow, blue
  • Neutral core: black
• Sheath: black
• The above indentifying can be changed as order

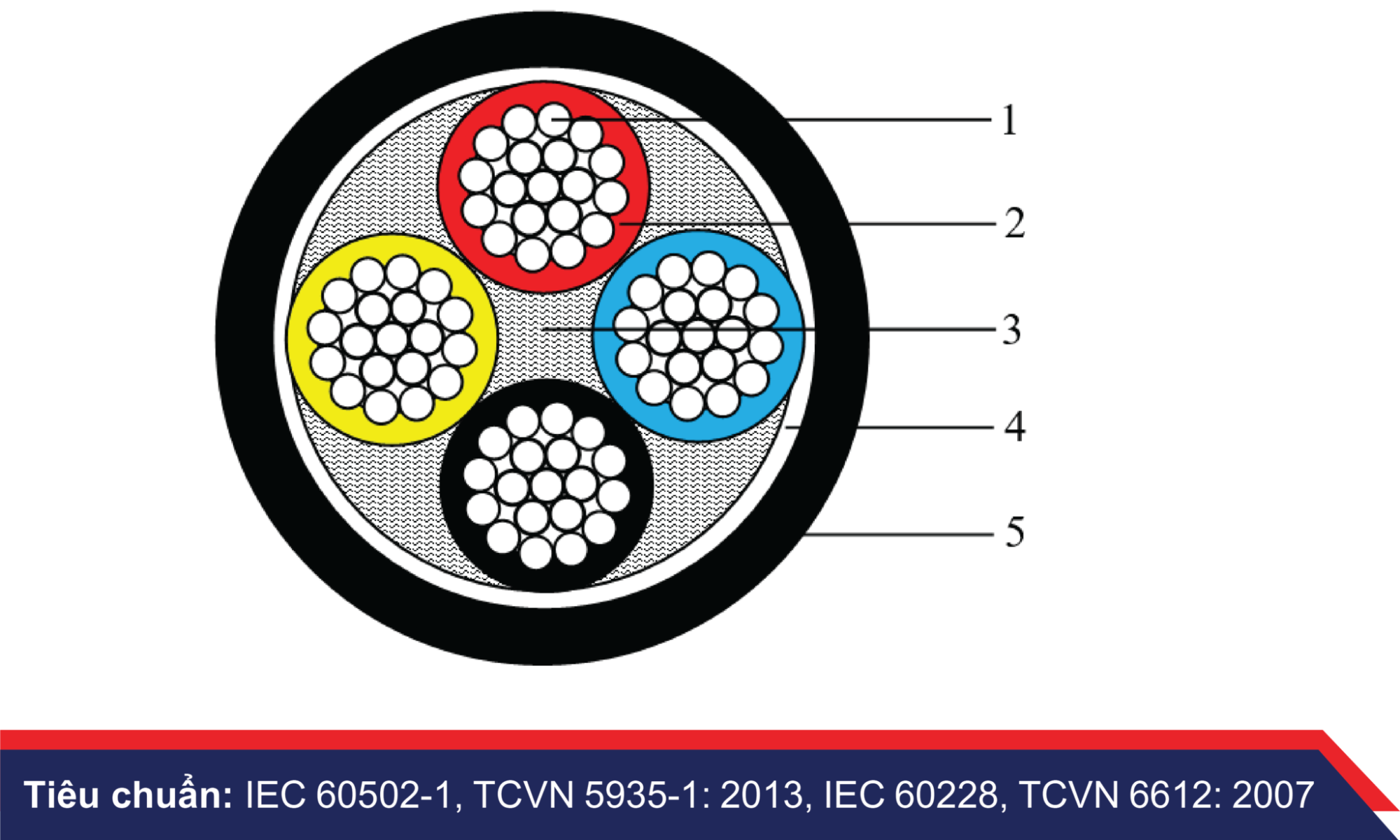

CONSTRUCTION (Caption for product structure image (left image)): Cu/PVC/PVC-W

1. Conductor: : Copper (class 2), compacted or non-compacted and water-blocking material
2. Insulation: PVC
3. Filler layer: PVC or PP, binder tape (if necessary)
4. Outer Sheath: PVC (ST1)

CABLE CHARACTERISTICS:

• Rated voltage U_o/U: 0,6/1 kV
• Max conductor temperature in normal operating conditions: 70°C
• Max conductor temperature when short-circuit in a maximum 5s:
  • For cross section of conductor > 300 mm²: 140°C
  • For conductor cross-section < 300 mm²: 160°C
