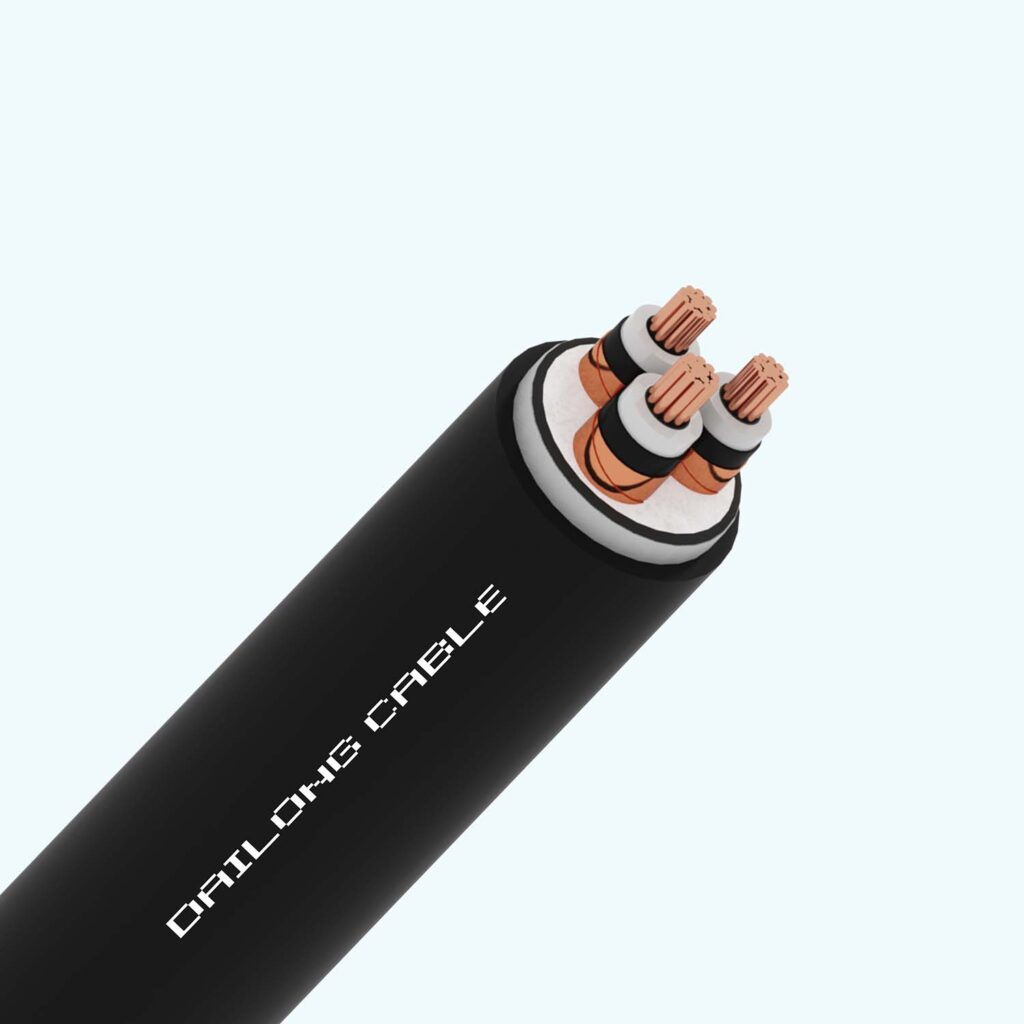

CONSTRUCTION (Caption for product structure image (left image)): Cu(AL)/XLPE/PVC/DSTA/PVC – W
- Conductor: Copper, Aluminium wires (class 2, compacted) and water blocking material
- Conductor screen: Semi-conductive compound
- Insulation: XLPE
- Insulation screen: Semi-conductive compound
- Metallic screen: Copper tape
- Filler: PP yarn
- Binder tape: Foam tape
- Separator sheath: PVC (ST2)
- Metallic armour: Double steel tape amour
- Outer sheath: PVC (ST2)
CABLE IDENTIFICATION: by color tape
- Cores: red, yellow, blue
- Outer sheath: Black or order
CABLE CHARACTERISTICS:
- Rated voltage U/Uo(Um): 20/35(40,5)kV
- Max. conductor temperature in normal operating conditions: 90oC
CLIENT CONSULTANT
Project Sales Department
Mr. Hai
CONTACT THE COMPANY
- Phone Number: (028) 37605134
- Email: dailong@dailongcable.com

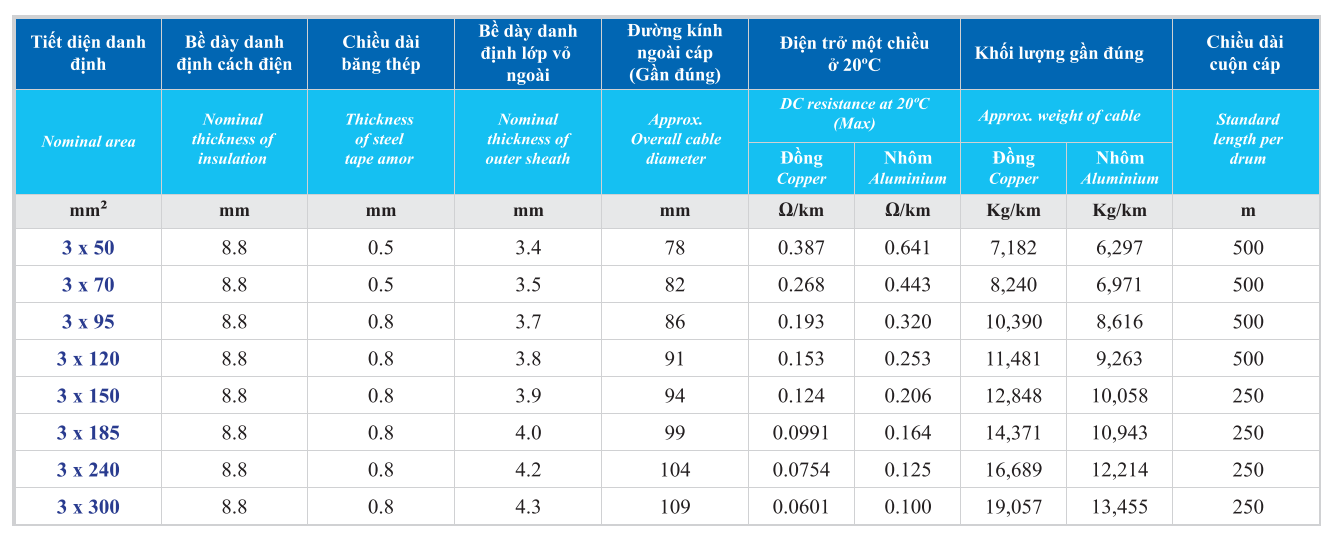

TECHNICAL INFORMATION
.XLPE.PVC.DSTA.PVC-W_20.35(40.5)kV-thongtin-new.png)
_XLPE_PVC–W–12,7__22_(24)kV_-_1.jpg)
_WB_–_12,7__22_(24)kV_-_1.jpg)
_XLPE_PVC_DATA_PVC_–_W_–_12,7__22_(24)kV_-_1.jpg)
_XLPE_PVC_DATA_PVC–W–12,7_22_(24)kV_-_1.jpg)
