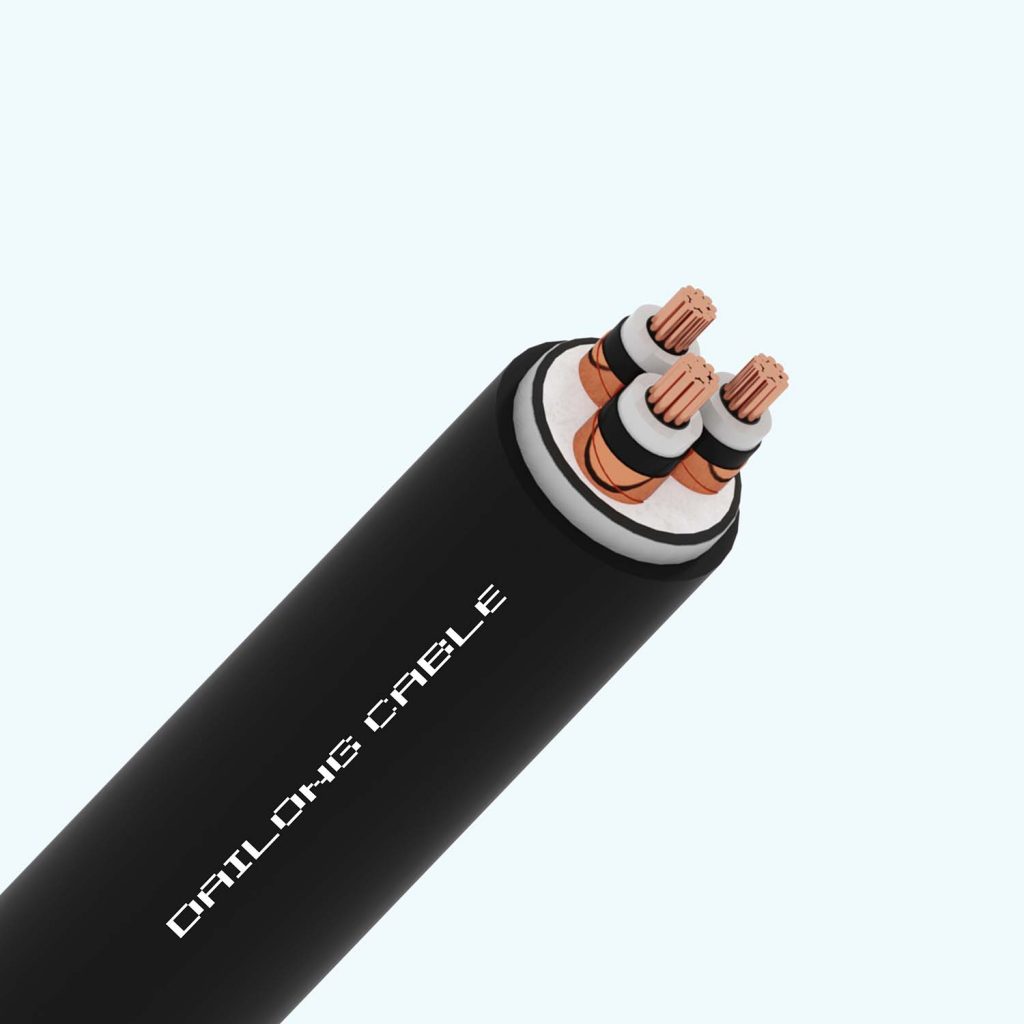

Cu(AL)/XLPE/PVC/DSTA/PVC W 18/ 30 (36)kV
Product price
Unit:
Quantily:

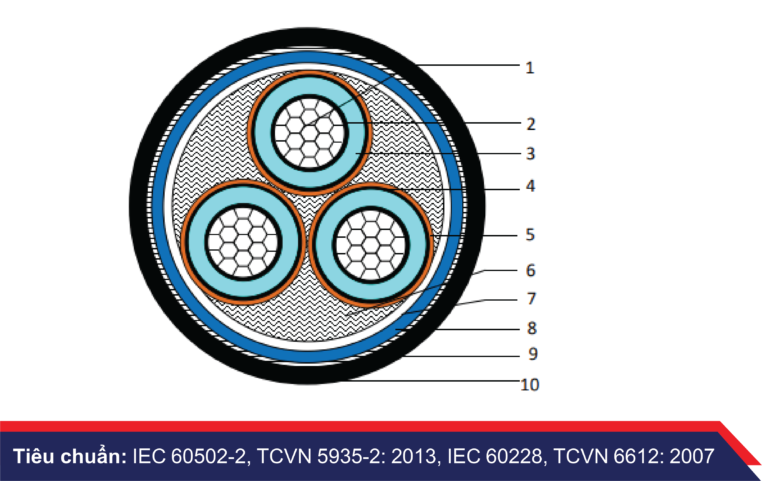

CONSTRUCTION (Caption for product structure image (left image)):  Cu(Al)/XLPE/PVC/DSTA/PVC -W

  1. Conductor: Copper or Aluminium (grade 2, compacted) and waterproof material
  2. Conductor Screen: Semi-conducting
  3. Insulation: XLPE
  4. Insulation Screen: Semi-conducting
  5. Metal Screen: Copper tape
  6. Layer Padding: PP yarn
  7. Wrapping Tape: Foam tape
  8. Separator Sheath: PVC (ST2)
  9. Armor Protection: Steel tape (2 layers)
  10. Outer Sheath: PVC (ST2)

CABLE IDENTIFICATION:

  • Insulation: XLPE Natural Color
  • Outer Sheath: Black or according to customer's requirement

CABLE CHARACTERISTICS:

  • Rated voltage Uo/U(Um): 18/30(36) kV
  • Max. conductor temperature in normal operating conditions: 90°C
CLIENT CONSULTANT
Project Sales Department
Project Sales Department
Mr. Hai

CONTACT THE COMPANY

  • Phone Number: (028) 37605134
  • Email: dailong@dailongcable.com

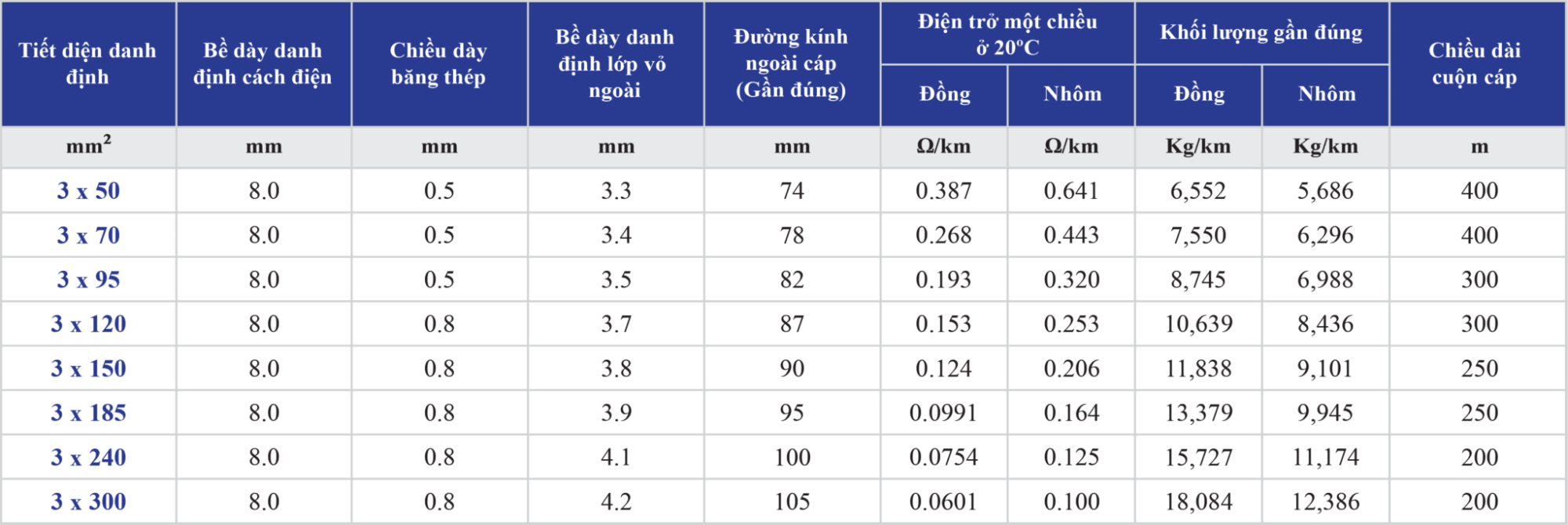

TECHNICAL INFORMATION
