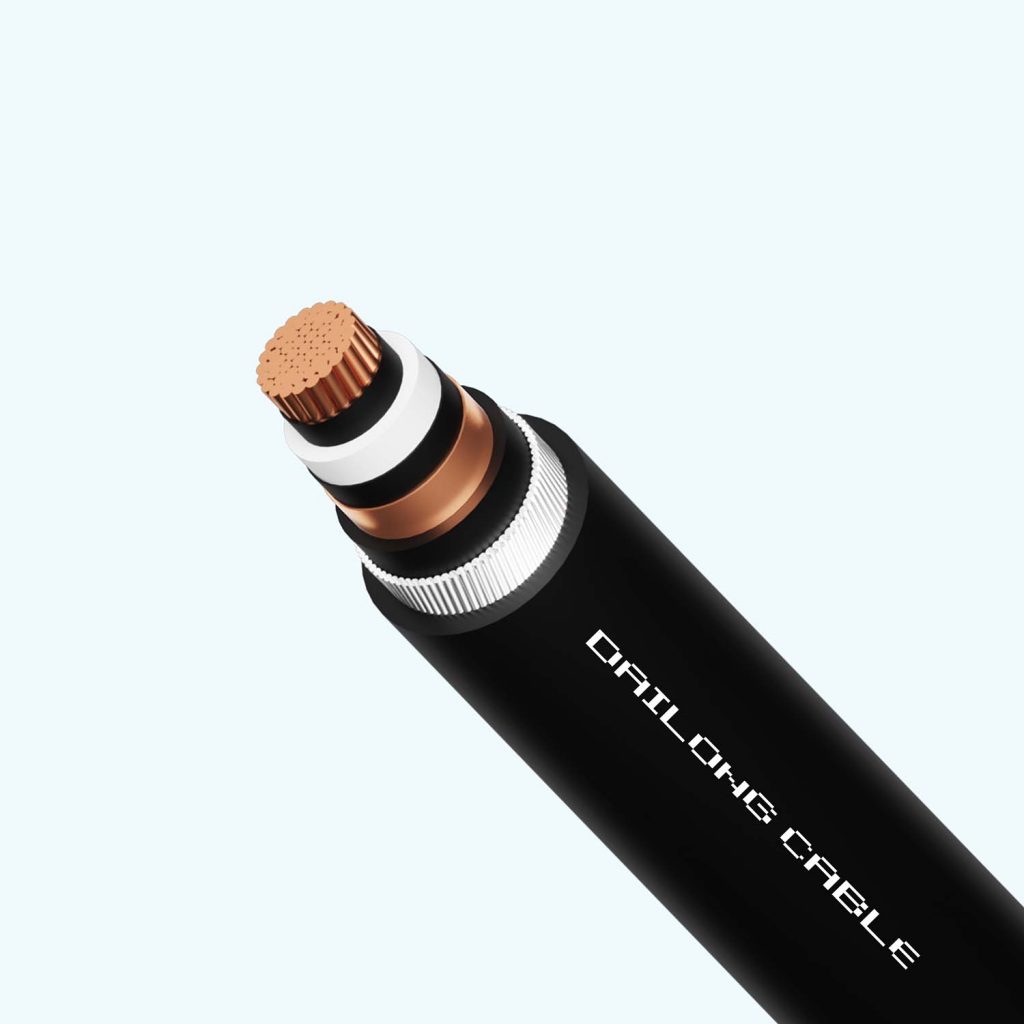

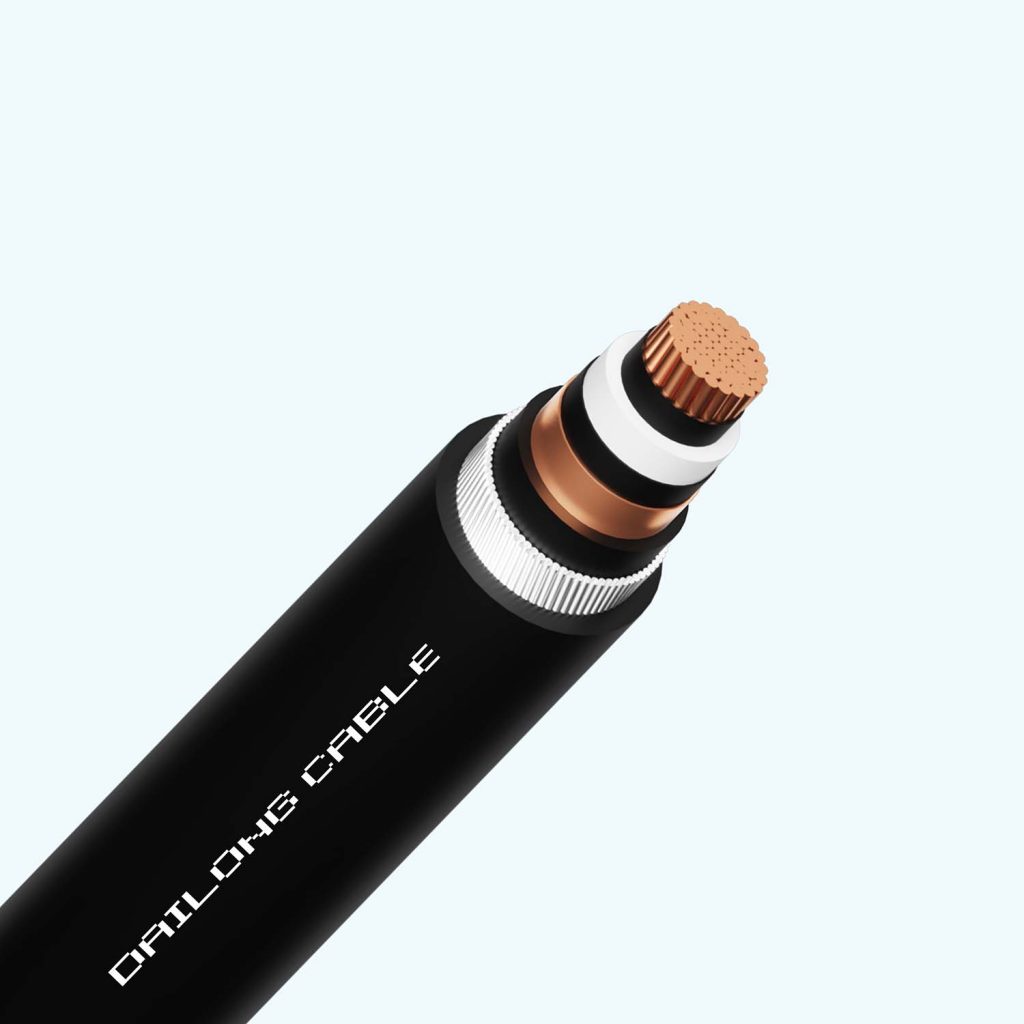

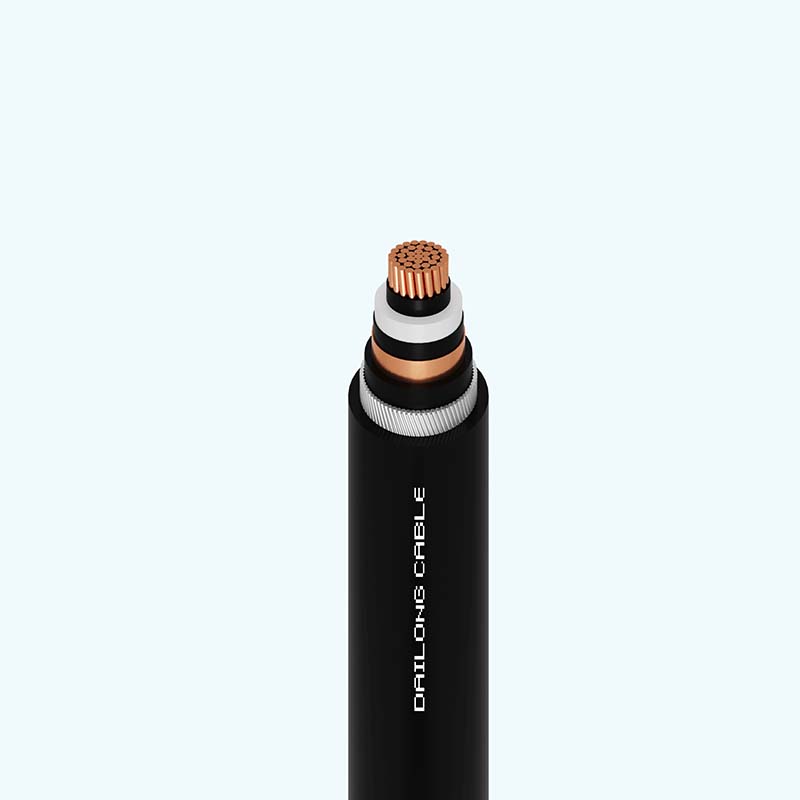

Cu(AL)/XLPE/PVC/AWA/PVC – W 18/30 (36)kV
Product price
Unit:
Quantily:

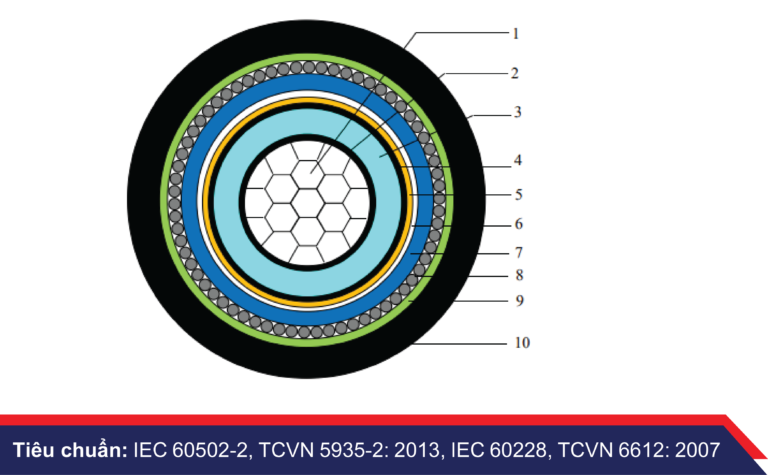

CONSTRUCTION (Caption for product structure image (left image)): Cu(AI)/XLPE/PVC/AWA/PVC-W

  1. Conductor: Copper or Aluminum (grade 2, compacted) and waterproof material
  2. Conductor Screen: Semi-conducting
  3. Insulation: XLPE
  4. Insulation Screen: Semi-conducting
  5. Metal Screen: Copper tape
  6. Wrapping Tape: Foam tape
  7. Separator Sheath: PVC (ST2)
  8. Armor Protection: Aluminum wires
  9. Wrapping Tape: Foam tape
  10. Outer sheath: PVC (ST2)

CABLE IDENTIFICATION:

Insulation: XLPE natural color
Outer Sheath: Black or according to customers' requirements

CABLE CHARACTERISTICS:
Rated voltage Uo/U(Um): 18/30(36) KV
Max. conductor temperature in normal operating conditions: 90°C

CLIENT CONSULTANT
Project Sales Department
Project Sales Department
Mr. Hai

CONTACT THE COMPANY

  • Phone Number: (028) 37605134
  • Email: dailong@dailongcable.com

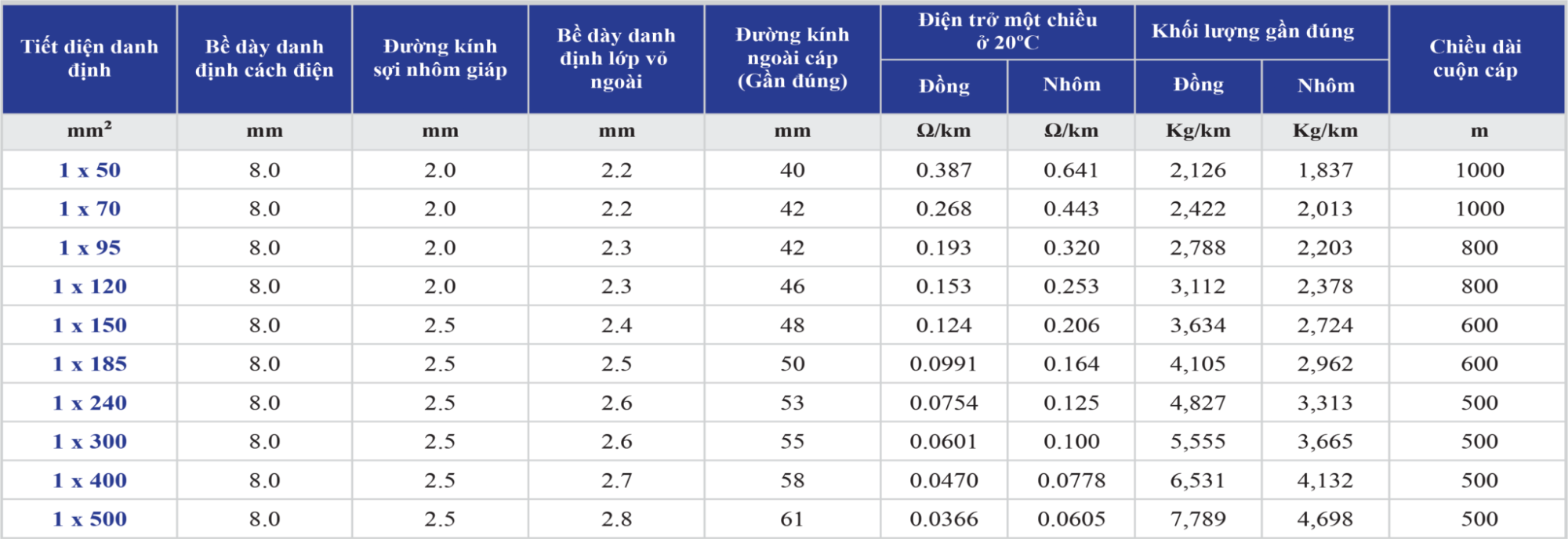

TECHNICAL INFORMATION
