CABLE IDENTIFICATION:
- Insulation: XLPE Natural Color
- Outer Sheath: Black or according to customer's requirement

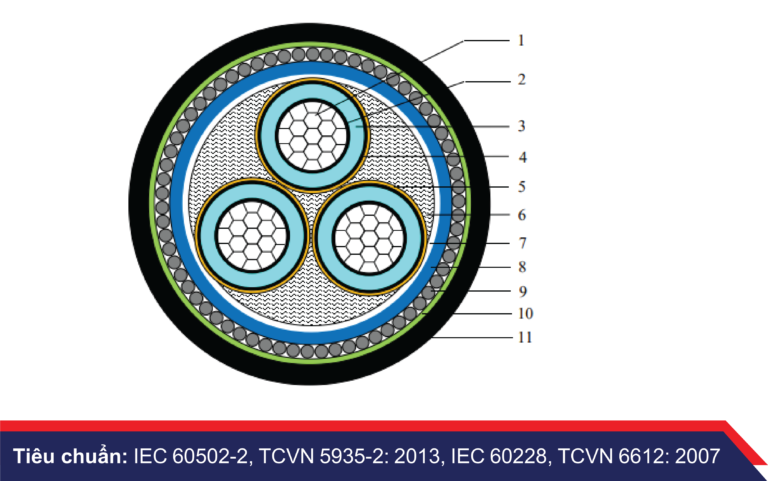

CONSTRUCTION (Caption for product structure image (left image)): Cu(AI)/XLPE/PVC/AWA/PVC - W
- Conductor: Copper or Aluminium (grade 2, compacted) and waterproof material
- Conductor Screen: Semi-conducting
- Insulation: XLPE
- Insulation Screen: Semi-conducting
- Metal Screen: Copper tape
- Layer Padding: PP yarn
- Wrapping Tape: Foam tape
- Separator Sheath: PVC (ST2)
- Armor Protection: Aluminium Wires
- Wrapping Tape: Foam tape
- Outer Sheath: PVC (ST2)
CABLE CHARACTERISTICS:
- Rated voltage Uo/U(Um): 18/30(36) kV
- Max. conductor temperature in normal operating conditions: 90°C
CLIENT CONSULTANT
Project Sales Department
Mr. Hai
CONTACT THE COMPANY
- Phone Number: (028) 37605134
- Email: dailong@dailongcable.com

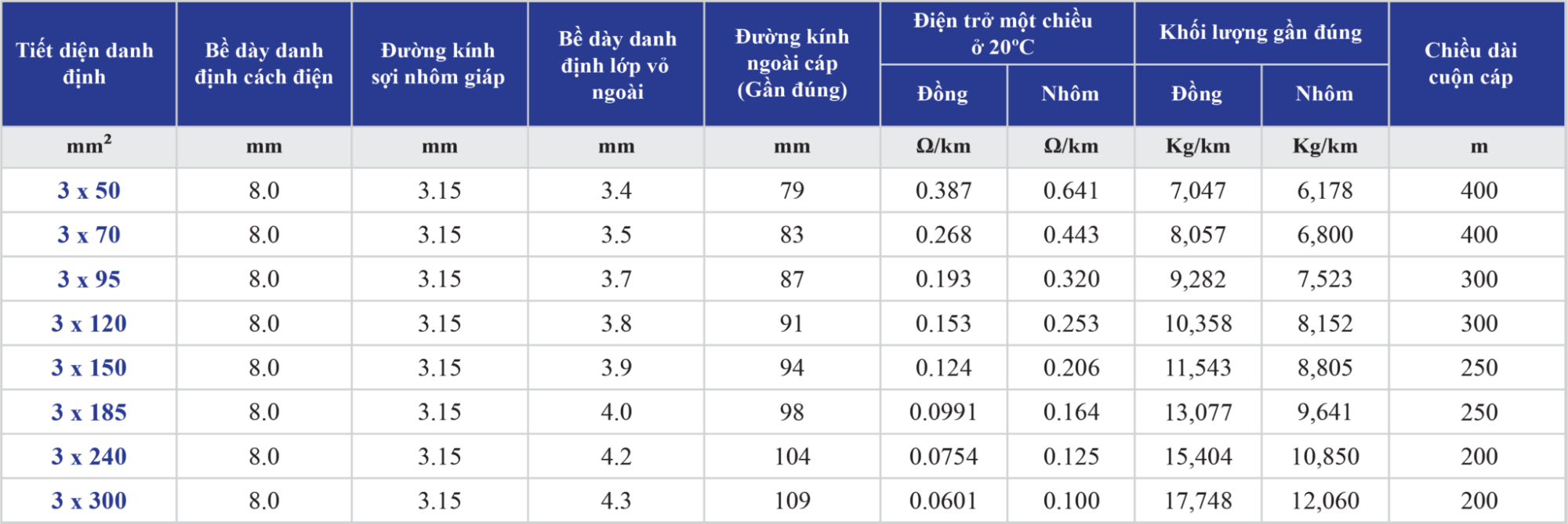

TECHNICAL INFORMATION
_XLPE_PVC_AWA_PVC_–_W_–_18__30_(36)kV_-_thongtin.png)
