ACWBCC - ACX/WB 12,7/22(24)kV
Product price
Cross section area:
Unit:
Quantily:

STANDARD:  IEC 60502-2; TCVN 5935-2, TCVN 5064

CABLE IDENTIFICATION:

  • Isulation: XLPE black

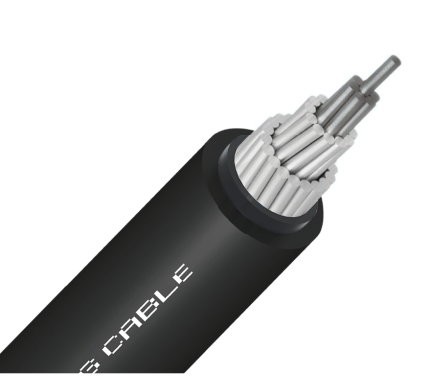

CONSTRUCTION (Caption for product structure image (left image)):  ACWBCC – ACX/WB

  1. Steel part: Zinc-Coated steel wires
  2. Aluminium part: Hard drawn aluminium wires, concentric stranded
  3. Waterproof system: Water-blocking material
  4. Conductor screen: Semi-conductive compound
  5. Insulation: XLPE

CABLE CHARACTERISTICS:

  • Rated voltage  U/Uo(Um): 12,7/22(24)kV
  • Max. conductor temperature in normal operating conditions: 90oC

CLIENT CONSULTANT
Project Sales Department
Project Sales Department
Mr. Hai

CONTACT THE COMPANY

  • Phone Number: (028) 37605134
  • Email: dailong@dailongcable.com

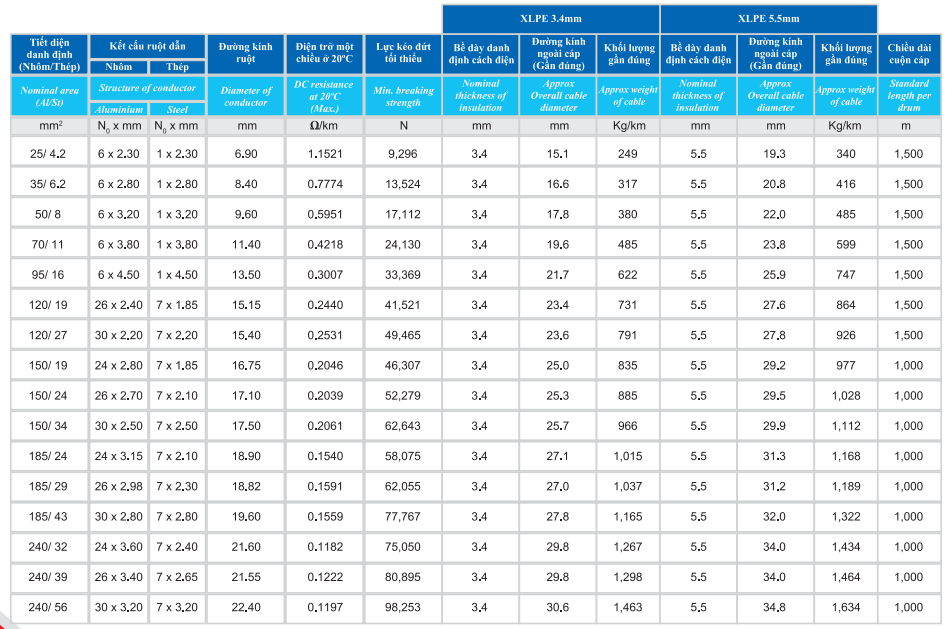

TECHNICAL INFORMATION
