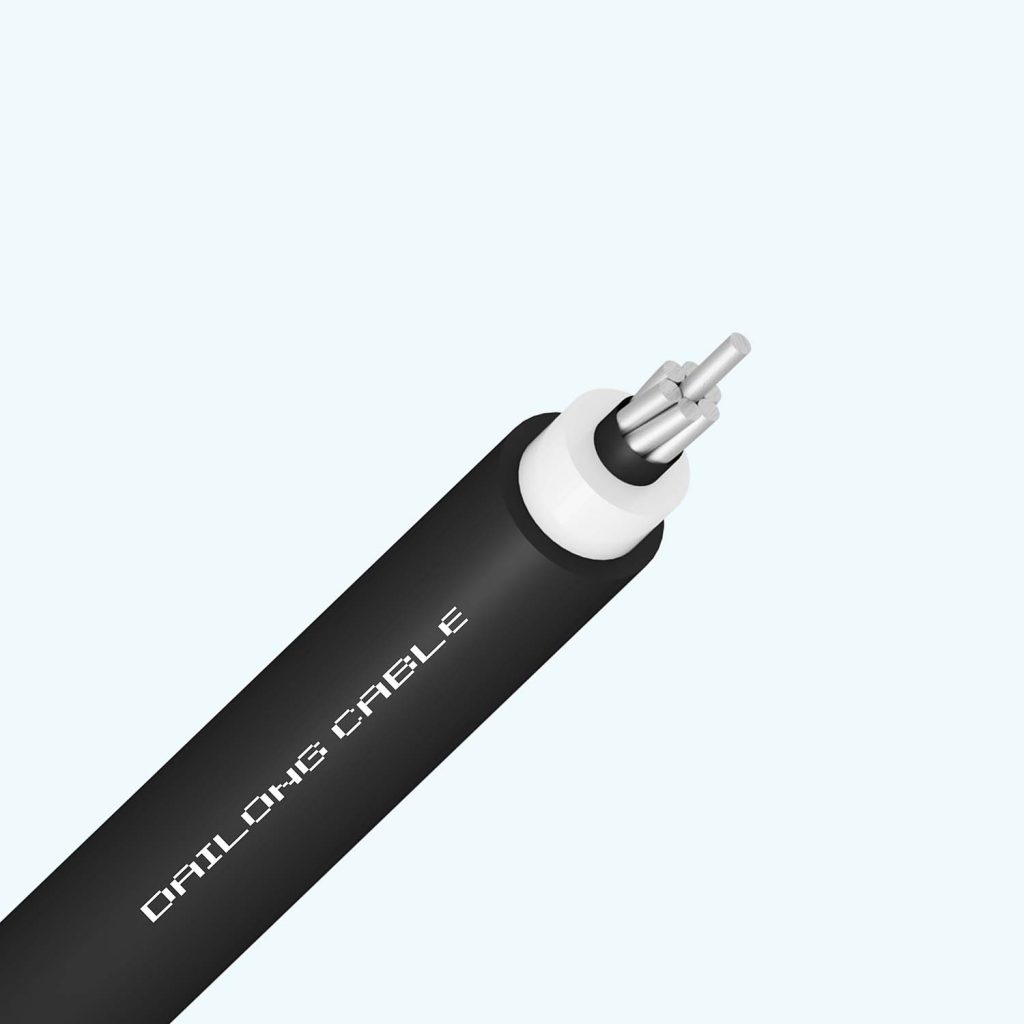

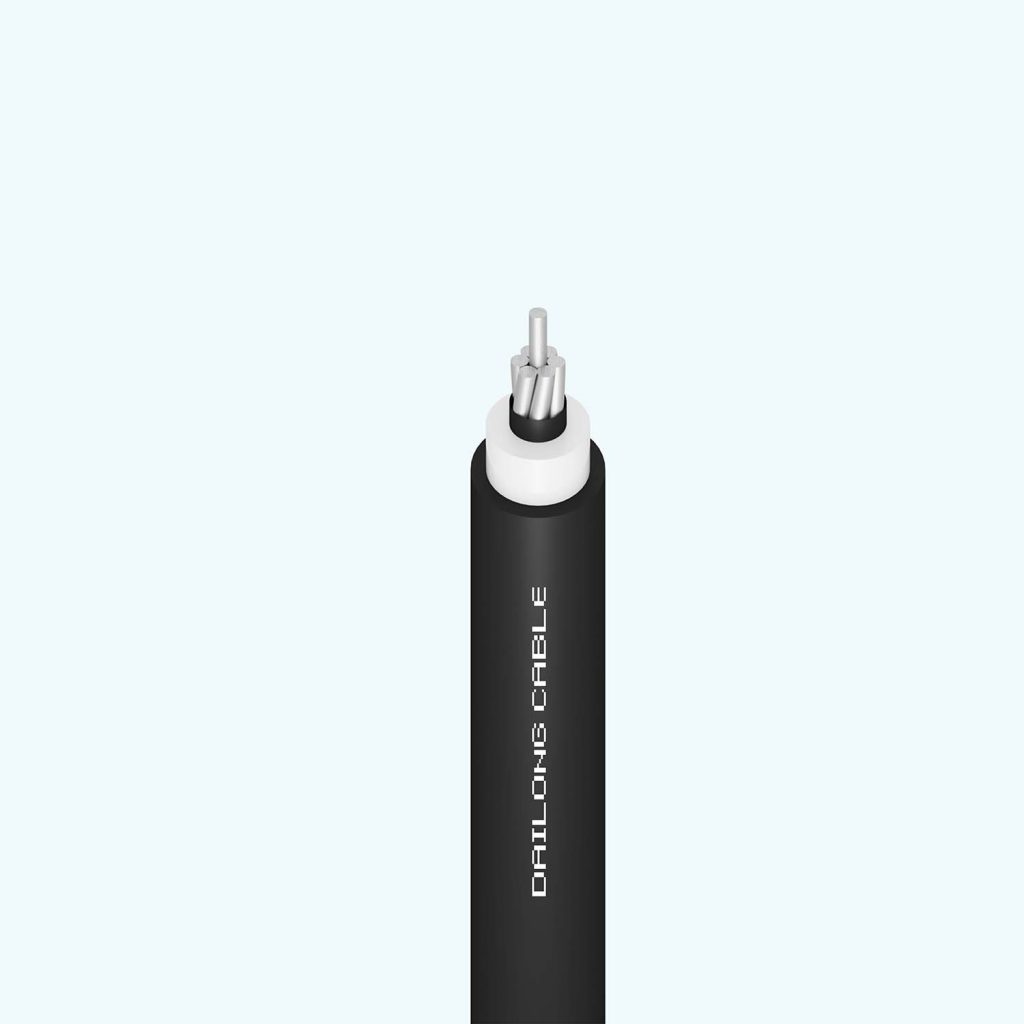

ACSR/XLPE/PVC – W 12,7/ 22 (24)kV
Product price
Unit:
Quantily:

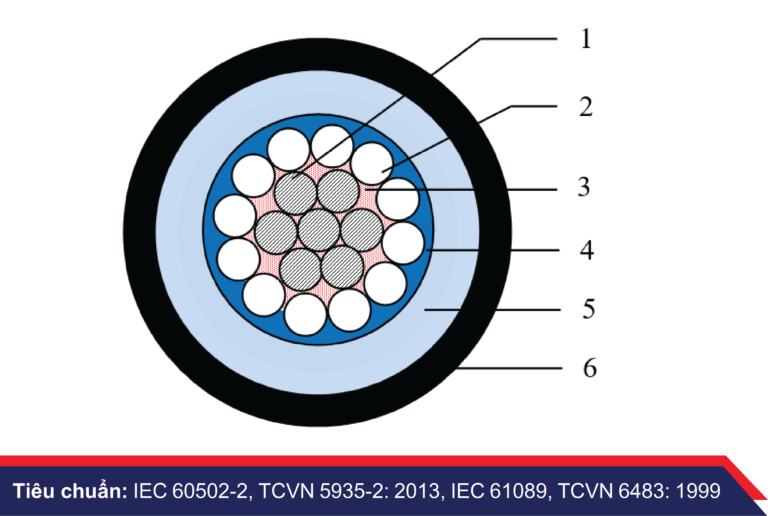

CONSTRUCTION (Caption for product structure image (left image)): ACSR/XLPE/PVC - W

  1. Bearing Steel Core
  2. Conductive Aluminum part
  3. Waterproof system: Waterproofing material
  4. Conductor Shield: Semi-conductor material
  5. Insulation: XLPE plastic natural color
  6. Outer Sheath: Black PVC

CABLE IDENTIFICATION:

  • Insulation: XLPE Natural color

CABLE CHARACTERISTICS:

  • Rated voltage Uo/U(Um): 12,7/22(24) kV
  • Max. conductor temperature in normal operating conditions: 90°C
CLIENT CONSULTANT
Project Sales Department
Project Sales Department
Mr. Hai

CONTACT THE COMPANY

  • Phone Number: (028) 37605134
  • Email: dailong@dailongcable.com

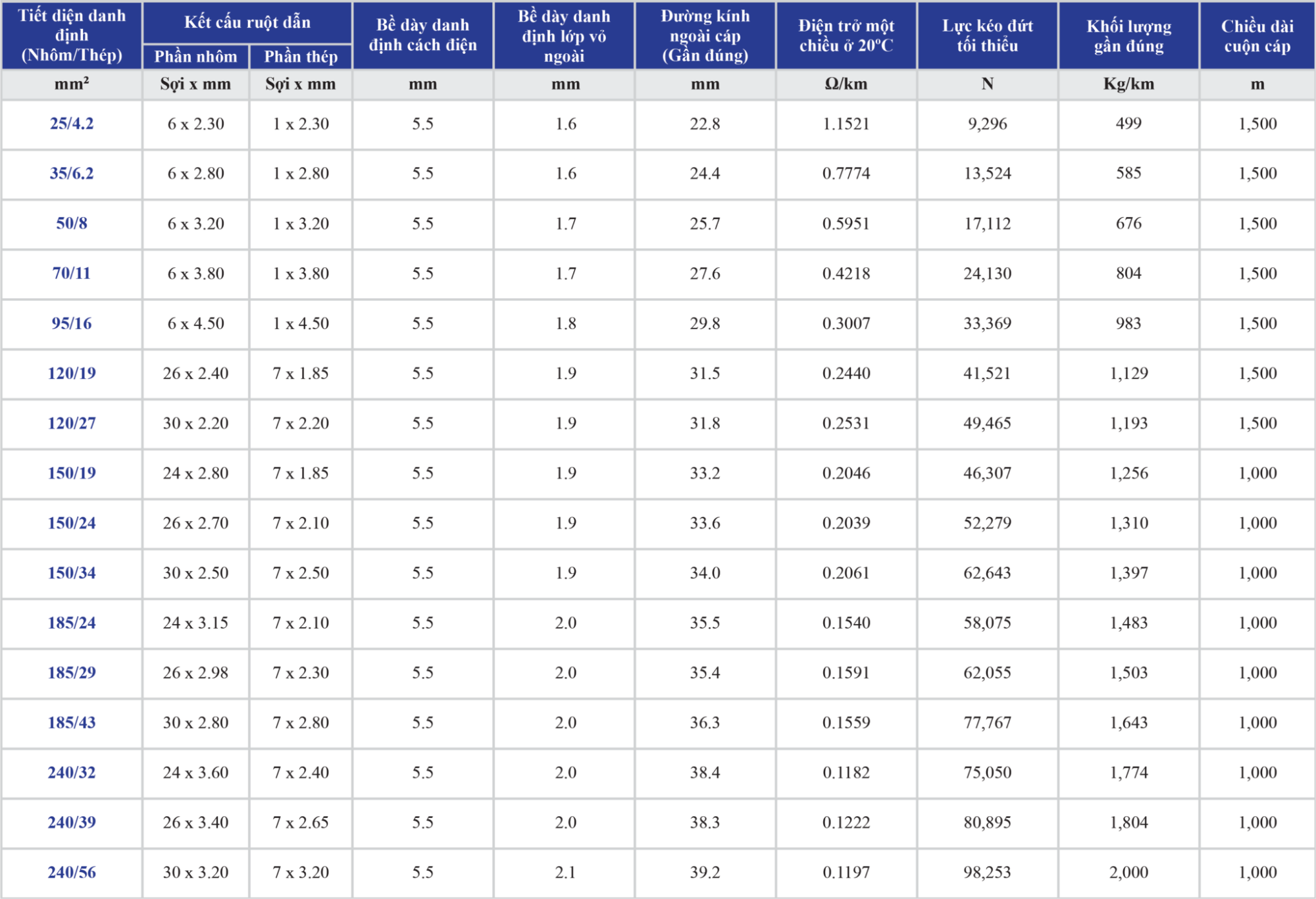

TECHNICAL INFORMATION
